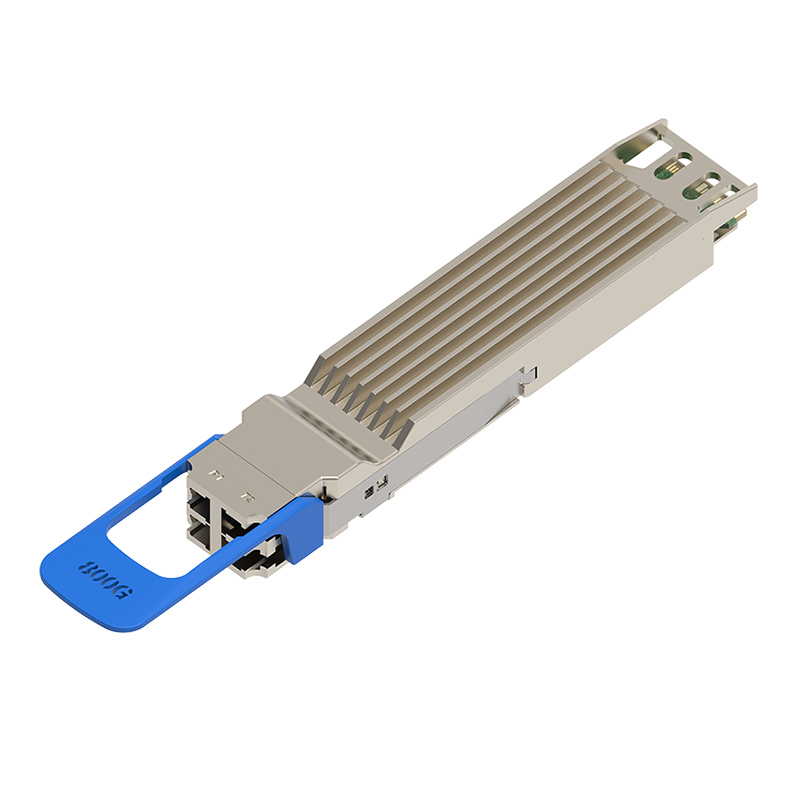

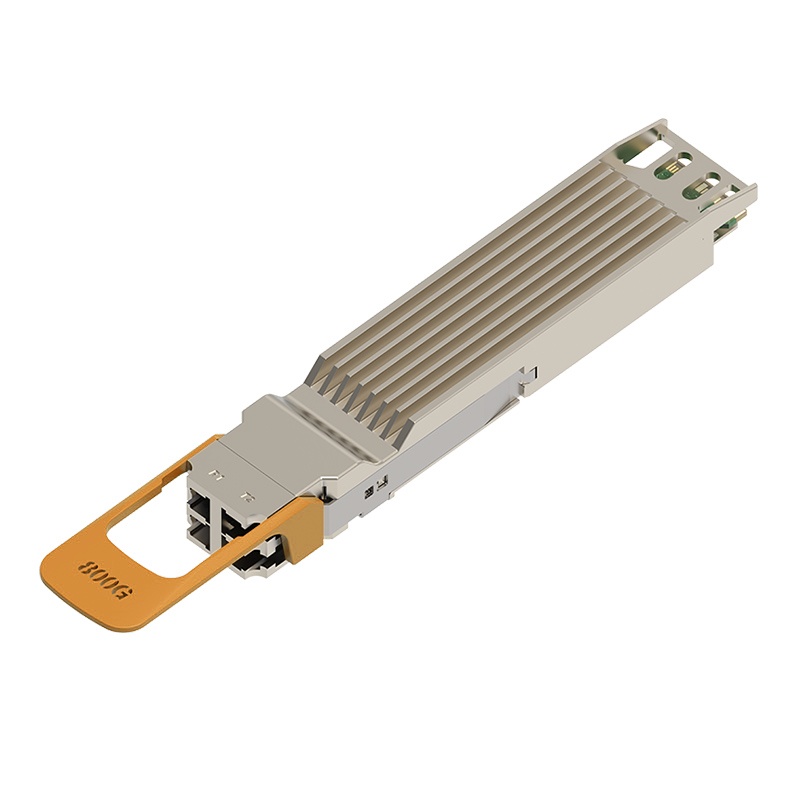

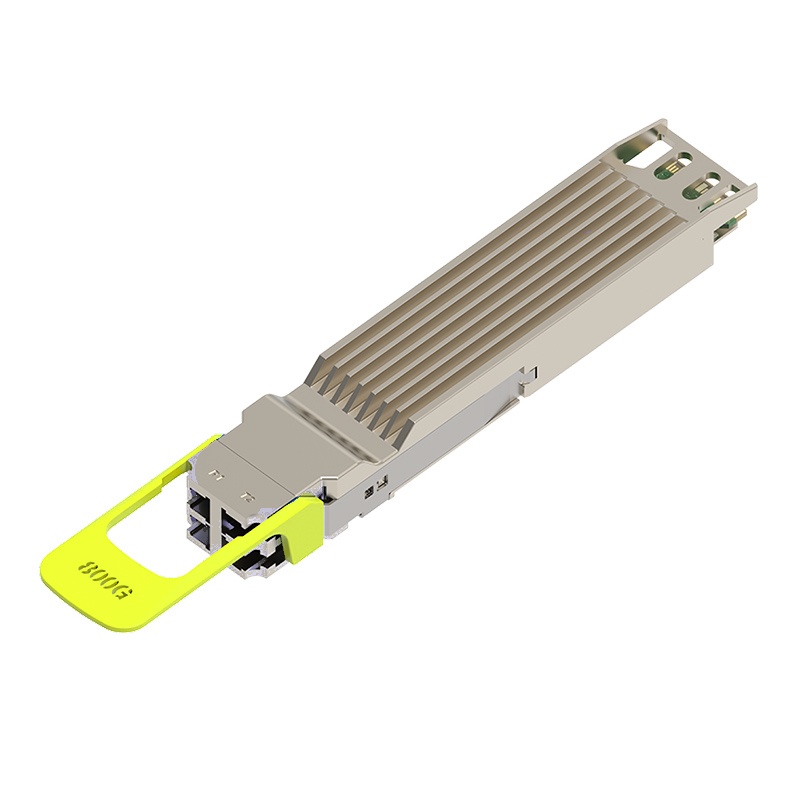

800G OSFP
800G OSFP transceivers are compliant with the latest releases of the OSFP MSA 5.0 and RoHS-6.
We offer SR8, DR8, 2 x LR4 and 2 x FR4 transceivers for various distances and applications.
The firmware supports CMIS 5.2 or higher.
We offer SR8, DR8, 2 x LR4 and 2 x FR4 transceivers for various distances and applications.
The firmware supports CMIS 5.2 or higher.
Features
- OSFP MSA 5.0 compliant
- 8x106.25 Gb/s (PAM4) optical interface
- 8x106.25 Gb/s (PAM4) electrical interface
- Maximum power consumption 14w@ Tcase = 70℃
- Operating case temperature: 0℃~70℃
- Single 3.3v power supply
- RoHS-6 compliant
Applications
- 800G Ethernet
- Data Center Applications
Ordering Information
| Part No. | Application | Data Rate | Wavelength | Distance | Connector | Temp |
|---|---|---|---|---|---|---|
|
DAOUC-AAQQA8 |
800G SR8 | 8*100G 800GbE |
850nm VCSEL |
100m | MPO-16 APC |
0~70℃ |
| DCOUC-22QQA8 | 800G DR8 | 8*100G 800GbE |
1311nm EML |
500m | 2*MPO-12 APC |
0~70℃ |
|
DEOLC-CWQQA8 |
800G 2*FR4 | 2*400G 800GbE |
CWDM EML |
2Km | LC |
0~70℃ |
|
D1OLC-CWQQB8 |
800G 2*LR4 |
2*400G 800GbE |
CWDM EML |
10Km | LC |
0~70℃ |
For more information, please contact anketitech.info@gmail.com
