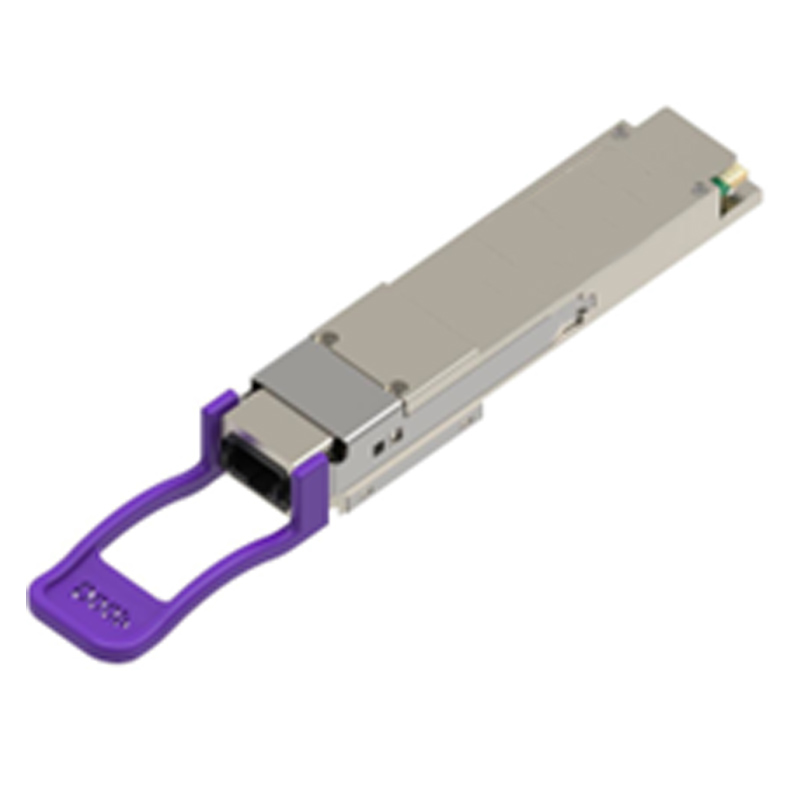

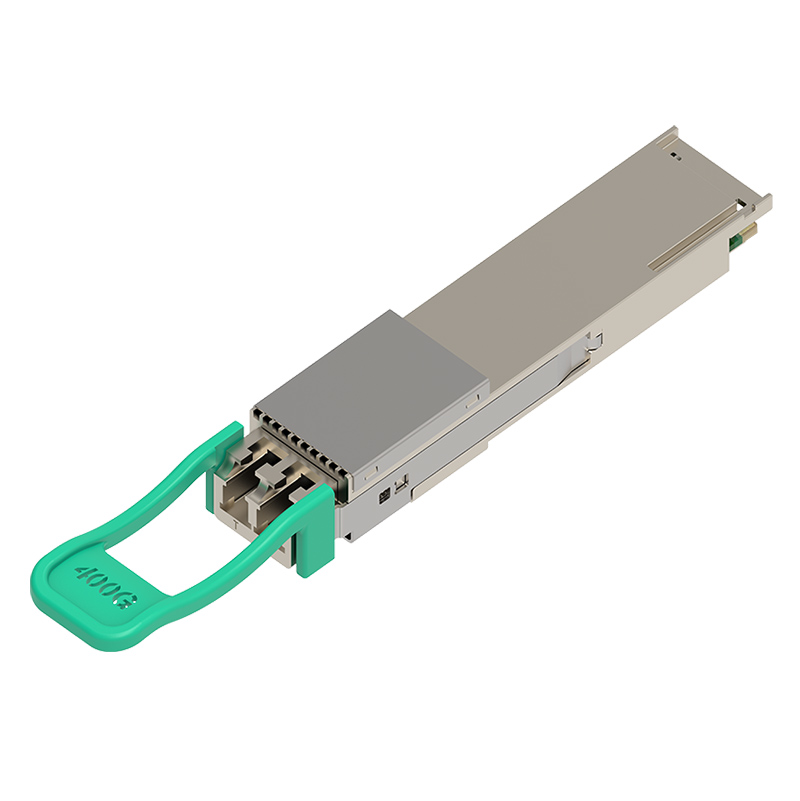

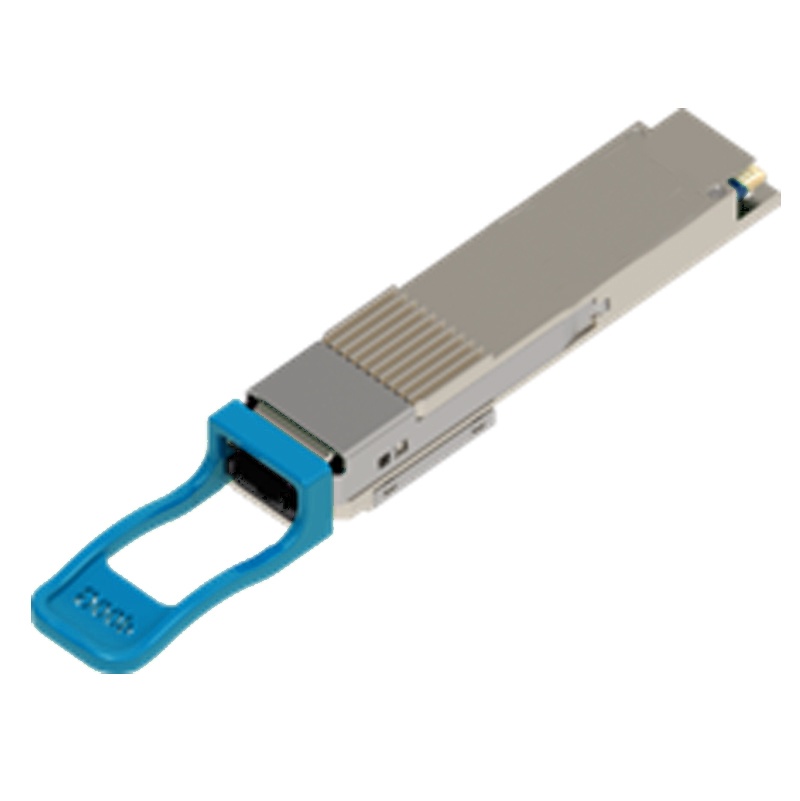

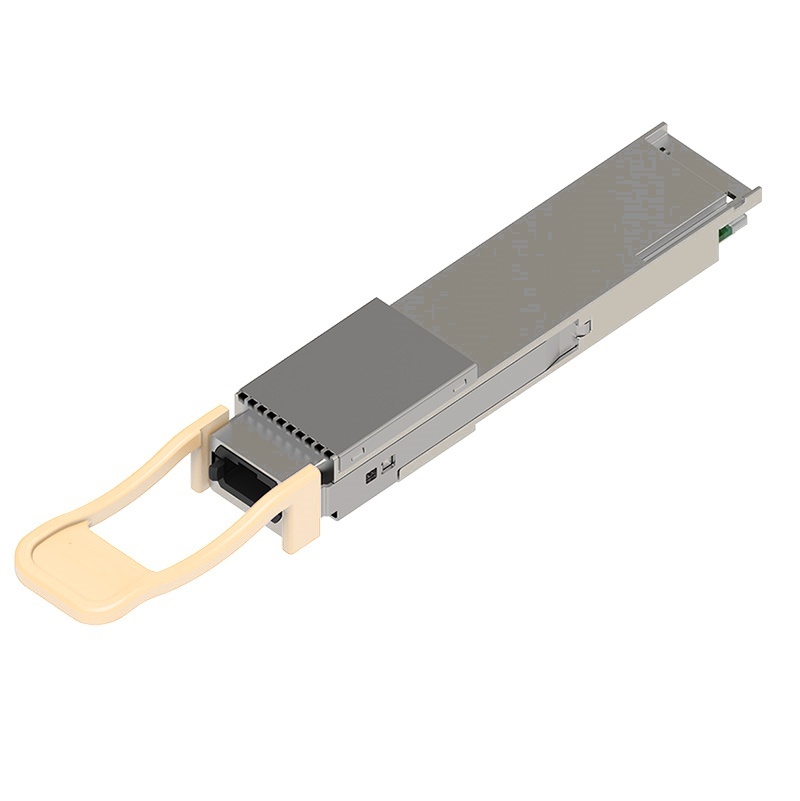

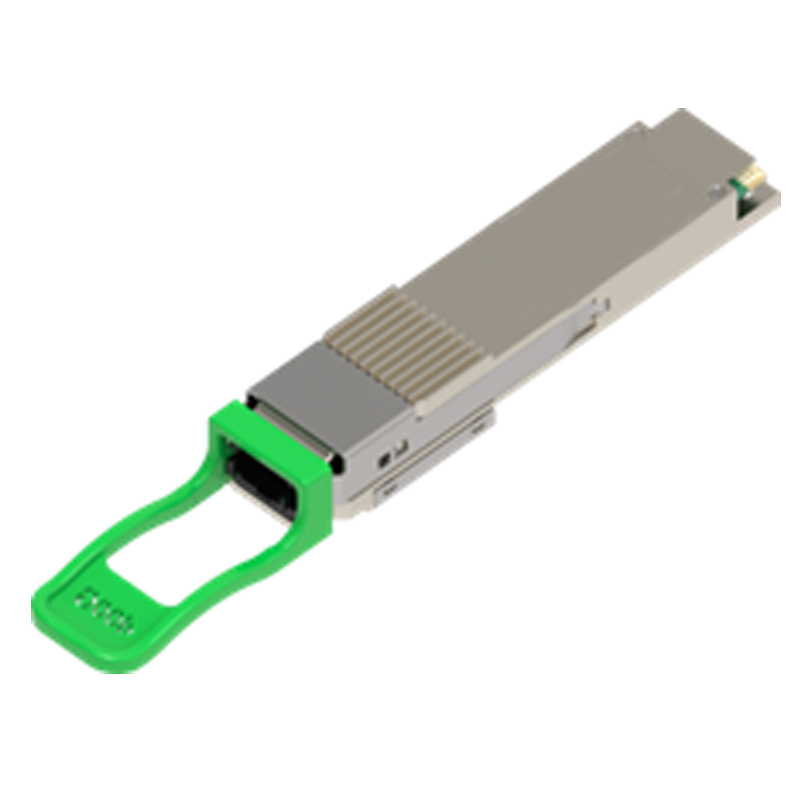

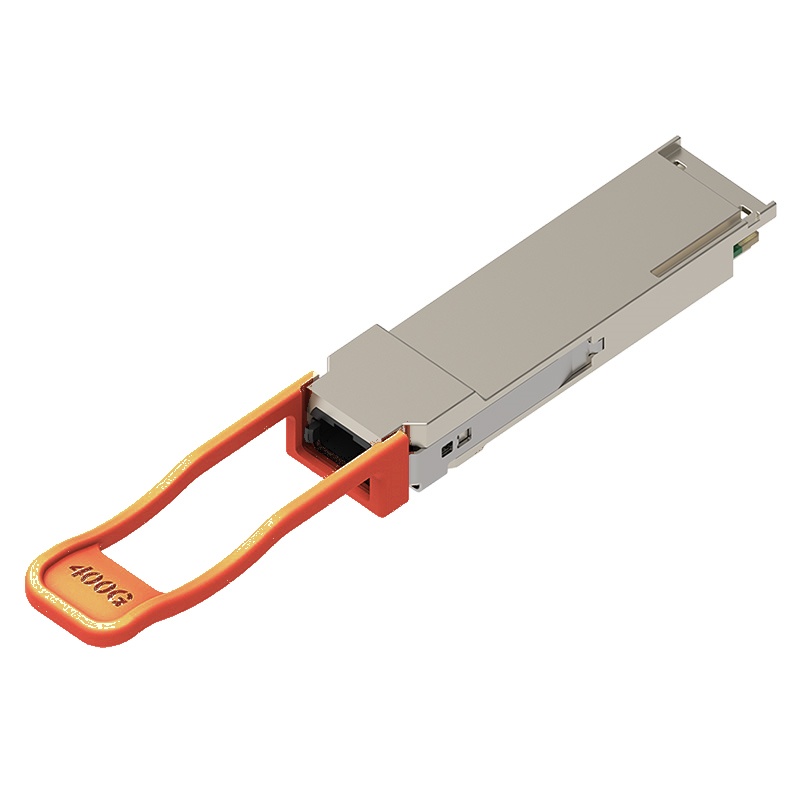

400G QSFP112
400G QSFP112 transceivers are compliant with the latest releases of the QSFP112 MSA and RoHS.
We offer VR4, SR4, DR4, DR4+, DR4++, FR4 and LR4 transceivers for various distances and applications.
The firmware supports CMIS 5.2 or higher.
We offer VR4, SR4, DR4, DR4+, DR4++, FR4 and LR4 transceivers for various distances and applications.
The firmware supports CMIS 5.2 or higher.
Feature
- RoHS compliance
- QSFP112 MSA compliance
- Supports 4x106.25Gb/s
- +3.3V power supply
- Power consumption less than 3W
- Operating case temperature: 0~70°C
Applications
- 400G Ethernet
- Datacenter switch
Ordering Information
| Part No. | Application | Data Rate | Wavelength | Distance | Connector | Temp |
|---|---|---|---|---|---|---|
|
DAQUC-AAQQB4 |
400G VR4 |
4*100G 400GbE |
850nm VCSEL |
50m |
MPO-12 APC |
0~70℃ |
|
DAQUC-AAQQA4 |
400G SR4 |
4*100G 400GbE |
850nm VCSEL |
100m |
MPO-12 APC |
0~70℃ |
|
DCQUC-22QQB4 |
400G DR4 |
4*100G 400GbE |
1311nm SIP |
500m |
MPO-12 APC |
0~70℃ |
|
DEQUC-22QQB4 |
400G DR4+ |
4*100G 400GbE |
1311nm SIP |
2Km |
MPO-12 APC |
0~70℃ |
|
DEQLC-CWQQB4 |
400G FR4 |
4*100G 400GbE |
CWDM EML |
2Km |
LC |
0~70℃ |
|
D1QUC-22QQB4 |
400G DR4++ |
4*100G 400GbE |
1311nm SIP |
10Km |
MPO-12 APC |
0~70℃ |
|
D1QLC-CWQQB4 |
400G LR4 |
4*100G 400GbE |
CWDM EML |
10Km |
LC |
0~70℃ |
For more information, please contact anketitech.info@gmail.com
