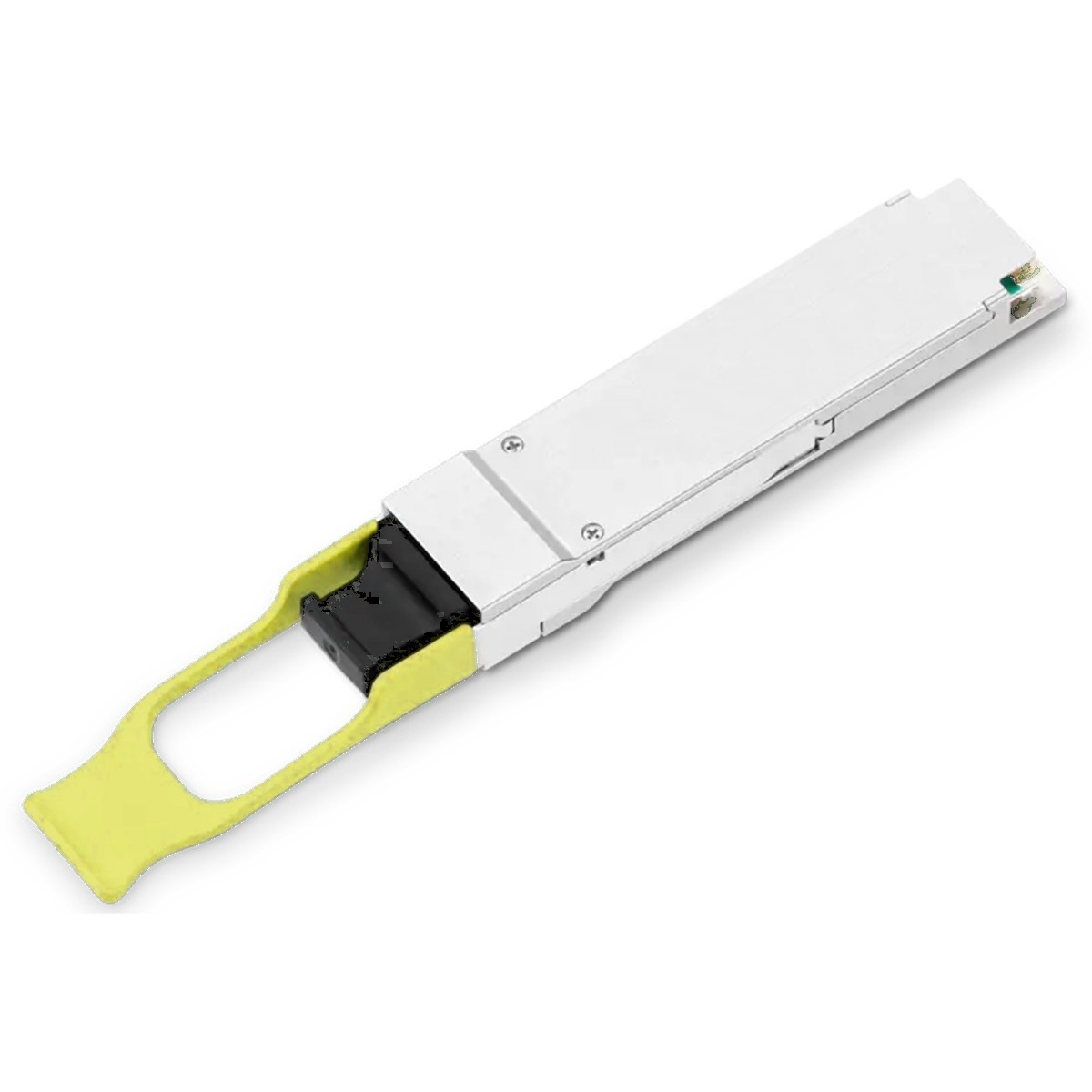

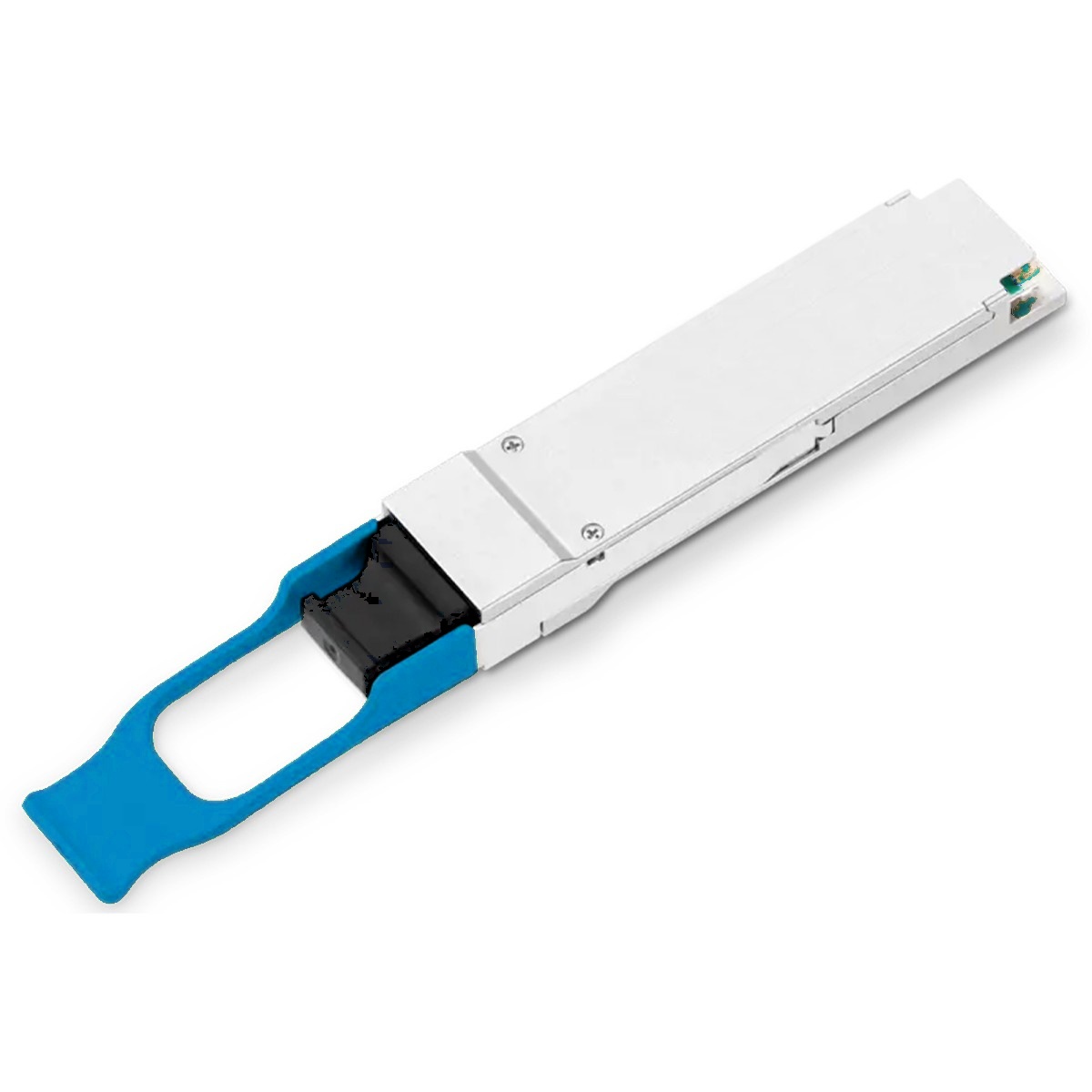

400G QSFP-DD
400G QSFP-DD transceivers are compliant with the latest releases of the QSFP-DD MSA and RoHS.
We offer SR8, DR4, DR4+ and FR4 transceivers for various distances and applications.
The firmware supports CMIS 4.0 or higher.
We offer SR8, DR4, DR4+ and FR4 transceivers for various distances and applications.
The firmware supports CMIS 4.0 or higher.
Feature
- QSFP-DD MSA compliant
- Supports 8x53.125Gb/s or 4x106.25Gb/s
- Maximum power consumption 12W
- Operating case temperature: 0℃~70℃
- Single 3.3V power supply
- RoHS compliant
Ordering Information
| Part No. | Application | Data Rate | Wavelength | Distance | Connector | Temp |
|---|---|---|---|---|---|---|
|
DARUC-AAPPA8 |
400G SR8 |
8*50G 400GbE |
850nm VCSEL |
100m |
MPO-16 APC |
0~70℃ |
|
DCRUC-22QQA4 |
400G DR4 |
4*100G 400GbE |
1311nm EML |
500m |
MPO-12 APC |
0~70℃ |
|
DERUC-22QQA4 |
400G DR4+ |
4*100G 400GbE |
1311nm EML |
2Km |
MPO-12 APC |
0~70℃ |
|
DERLC-CWQQA4 |
400G FR4 |
4*100G 400GbE |
CWDM EML |
2Km |
LC |
0~70℃ |
For more information, please contact anketitech.info@gmail.com
