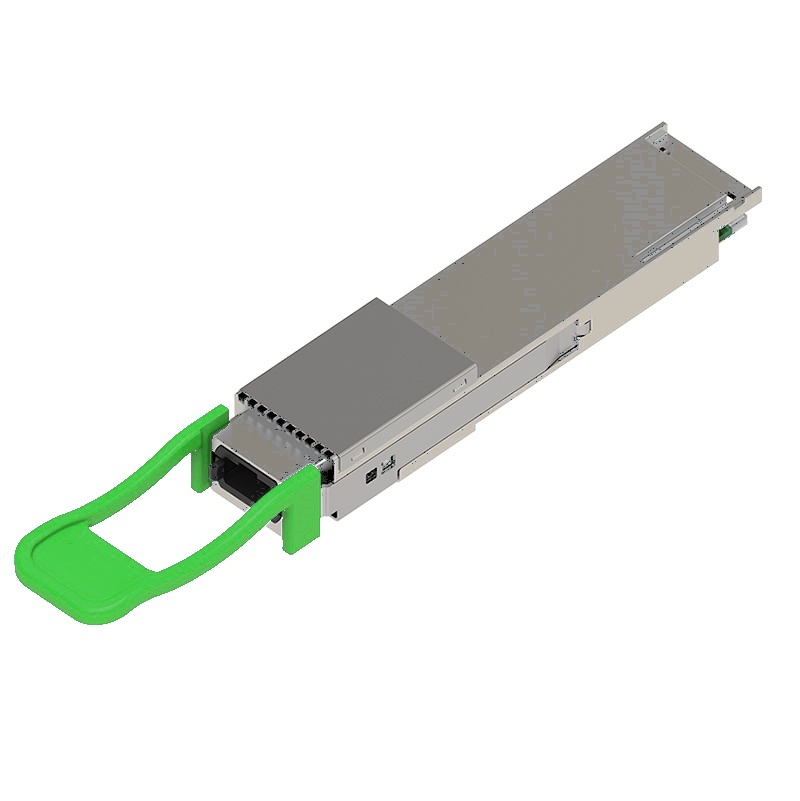

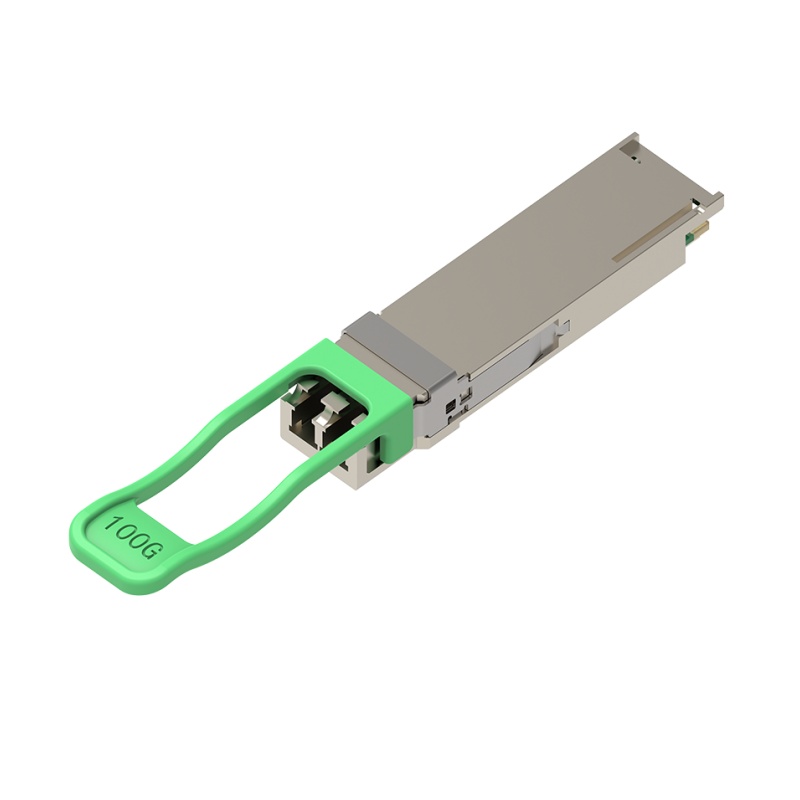

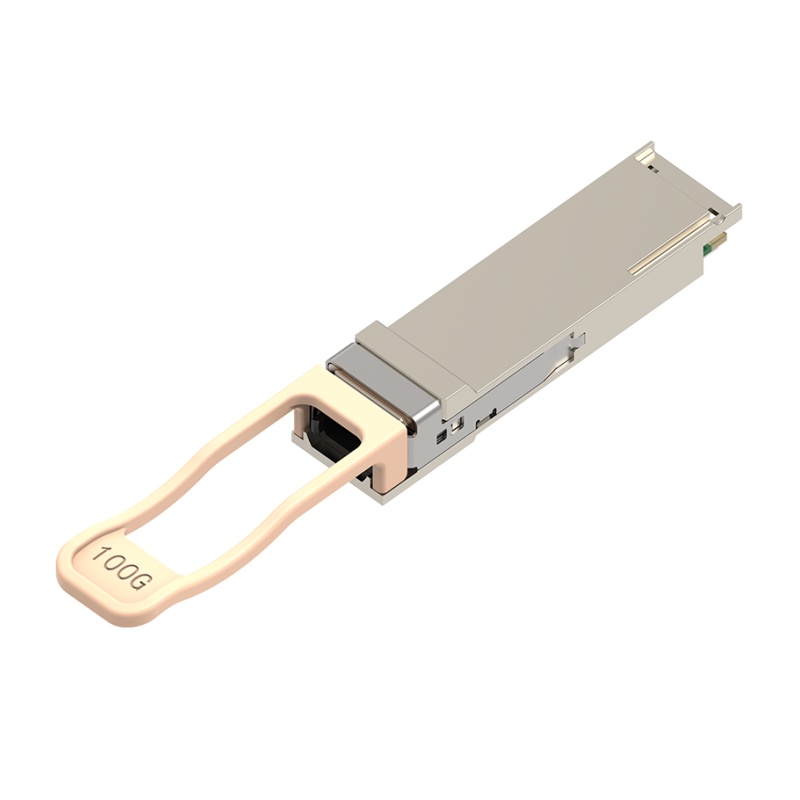

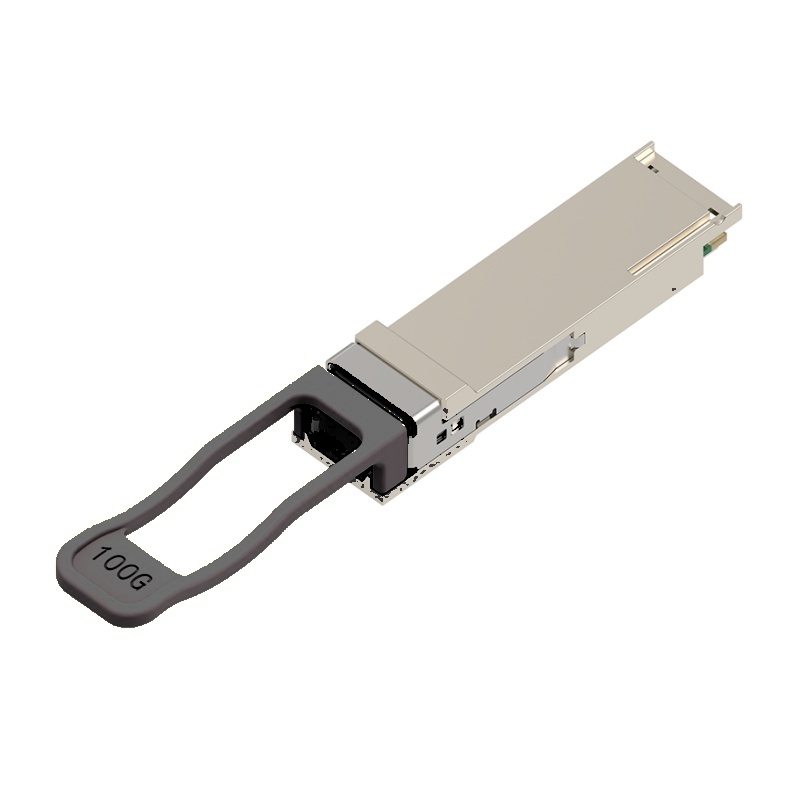

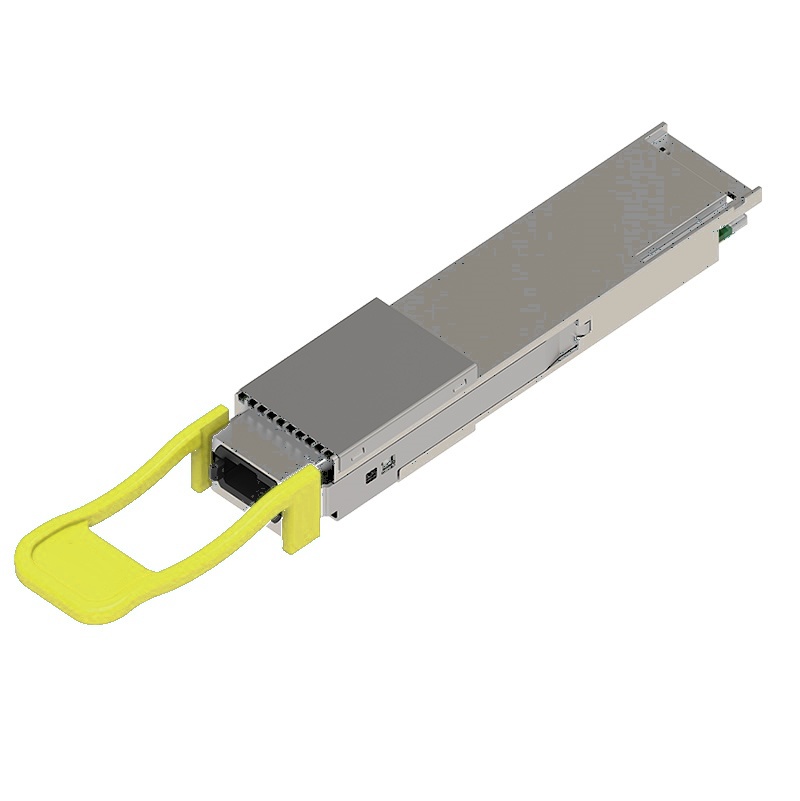

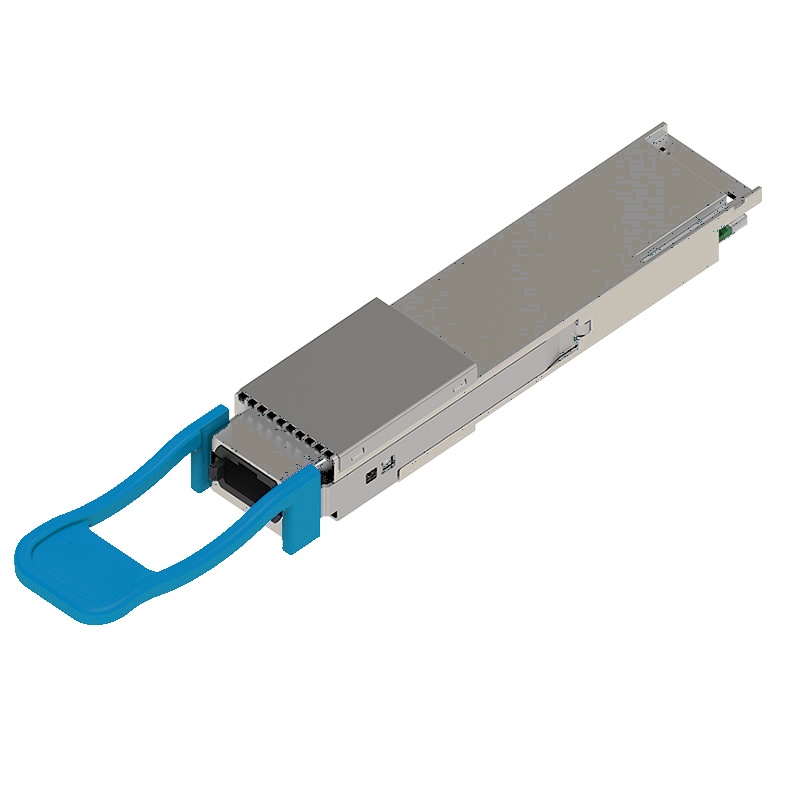

100G QSFP28
100G QSFP28 transceivers are compliant with the latest releases of the QSFP MSA and ROHS6.
We offer LR1, DR1, FR1, ER4, ZR4, LR4, PSM4, CWDM4 and SR4 transceivers for various distances and use cases.
We offer LR1, DR1, FR1, ER4, ZR4, LR4, PSM4, CWDM4 and SR4 transceivers for various distances and use cases.
Feature
- QSFP MSA compliant
- Hot-pluggable QSFP28 form factor
- Single +3.3V power supply
- Power consumption less than 3.5W
- Operating case temperature: 0 ~70°C
- Compliant with ROHS
Ordering Information
| Part No. | Application | Data Rate | Wavelength | Distance | Connector | Temp |
|---|---|---|---|---|---|---|
|
DAQUC-AAMMA4 |
100G SR4 |
4*25G 100GbE |
850nm VCSEL |
100m |
MPO |
0~70℃ |
|
DCQUC-22MMA4 |
100G PSM4 |
4*25G 100GbE | 1311nm | 500m |
MPO |
0~70℃ |
|
DEQLC-CWMMA4 |
100G CWDM4 |
4*25G 100GbE |
CWDM DFB |
2Km |
LC |
0~70℃ |
|
D1QLC-LWMMB4 |
100G LR4 |
4*25G 100GbE |
LWDM DFB |
10Km | LC | 0~70℃ |
|
DCQLC-22QQB1 |
100G DR1 |
103Gbps |
1311nm EML |
500m | LC | 0~70℃ |
|
DEQLC-22QQB1 |
100G FR1 |
103Gbps |
1311nm EML |
2Km | LC | 0~70℃ |
|
D1QLC-22QQB1 |
100G LR1 |
103Gbps |
1311nm EML |
10Km | LC | 0~70℃ |
|
T1QLC-LWMMA4 |
100G LR4 |
4*25G 100GbE |
LWDM DFB |
10Km | LC | 0~70℃ |
|
T4QLC-LWMMA4 |
100G ER4 |
4*25G 100GbE |
LWDM EML |
40Km | LC | 0~70℃ |
|
T8QLC-LWMMA4 |
100G ZR4 |
4*25G 100GbE |
LWDM EML |
80Km | LC | 0~70℃ |
For more information, please contact anketitech.info@gmail.com
