400G QSFP-DD AOC
400G QSFP-DD AOC transceivers are designed for data centers, supporting 400G QSFP-DD to 2*200G QSFP56, 400G QSFP-DD to 4x100G QSFP56 AOC, and 400G QSFP-DD to OSFP112 RHS.
The transceivers are compliant with the latest releases of the QSFP-DD/QSFP56/OSFP112 MSA and RoHS.
The firmware supports CMIS 4.0 or higher.
The transceivers are compliant with the latest releases of the QSFP-DD/QSFP56/OSFP112 MSA and RoHS.
The firmware supports CMIS 4.0 or higher.
Feature
- Hot-pluggable QSFP-DD
- +3.3V power supply
- Operating case temperature: 0~+70°C
- Compliant with RoHs
Applications
- Data center
Ordering Information
| Part No. | Description | Data Rate | Wavelength | Distance | Temp |
|---|---|---|---|---|---|
|
DSRCC-AAQQA4-xxx |

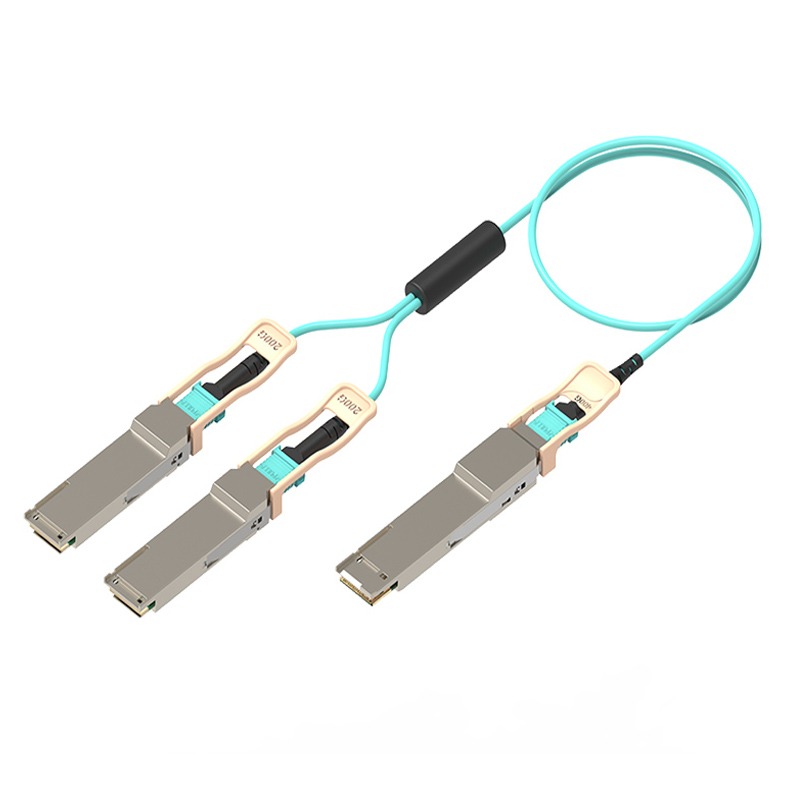

400G QSFP-DD to 2x200G QSFP56 AOC |
8*50G 400GbE |
850nm VCSEL |
1~70m |
0~70℃ |
|
DSRCC-AAPPB8-xxx |

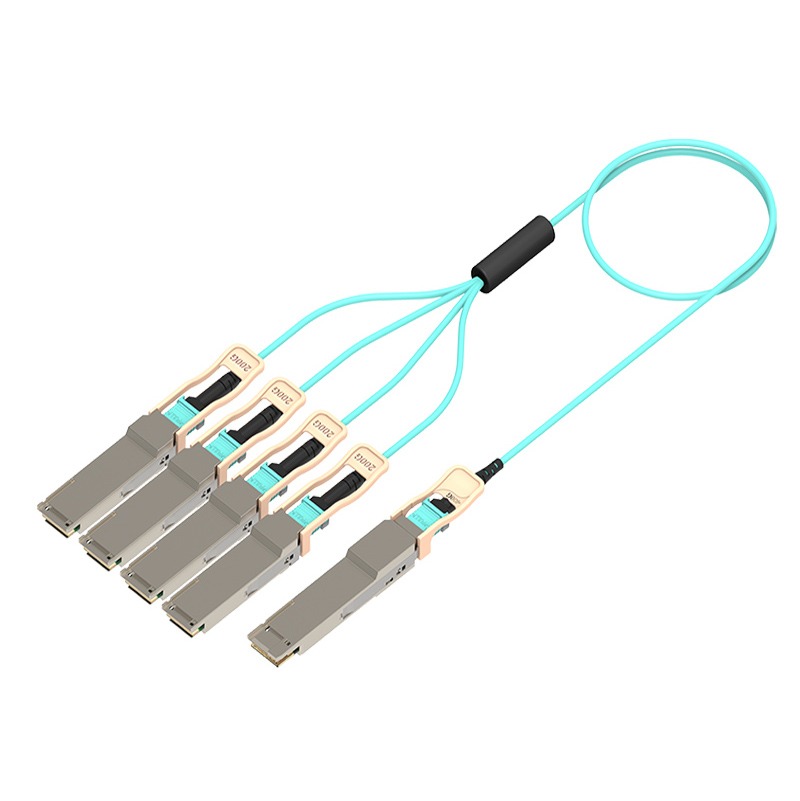

400G QSFP-DD to 4x100G QSFP56 AOC |
8*50G 400GbE |
850nm VCSEL |
1~20m |
0~70℃ |
|
DSRCC-ZZPQB8-xxx |
400G QSFP-DD to OSFP112 RHS AOC |
8*50G 400GbE | SIP |
1~500m |
0~70℃ |
xxx is Distance.
For more information, please contact anketitech.info@gmail.com
