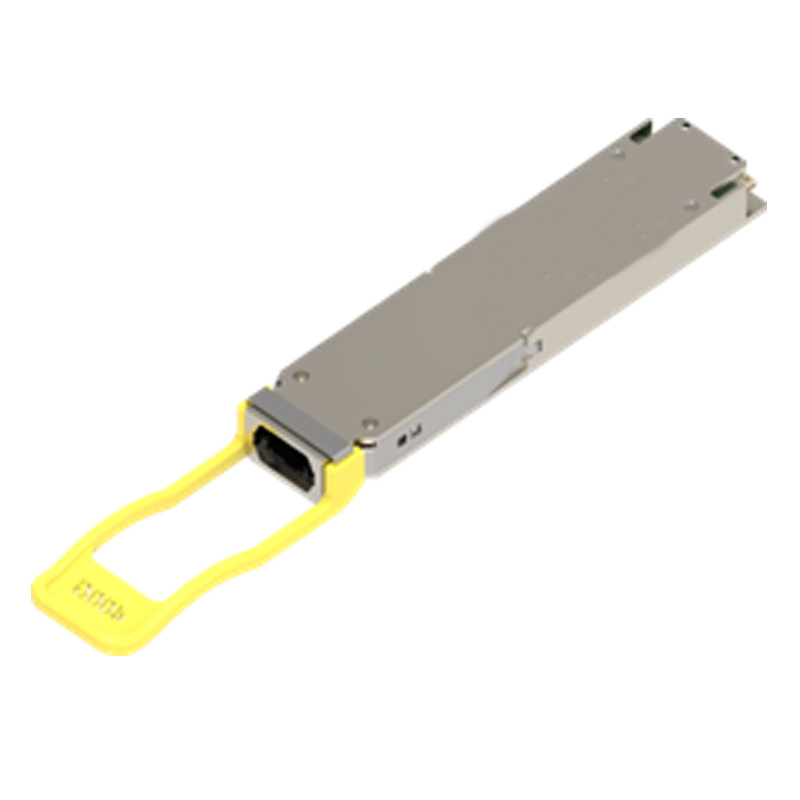

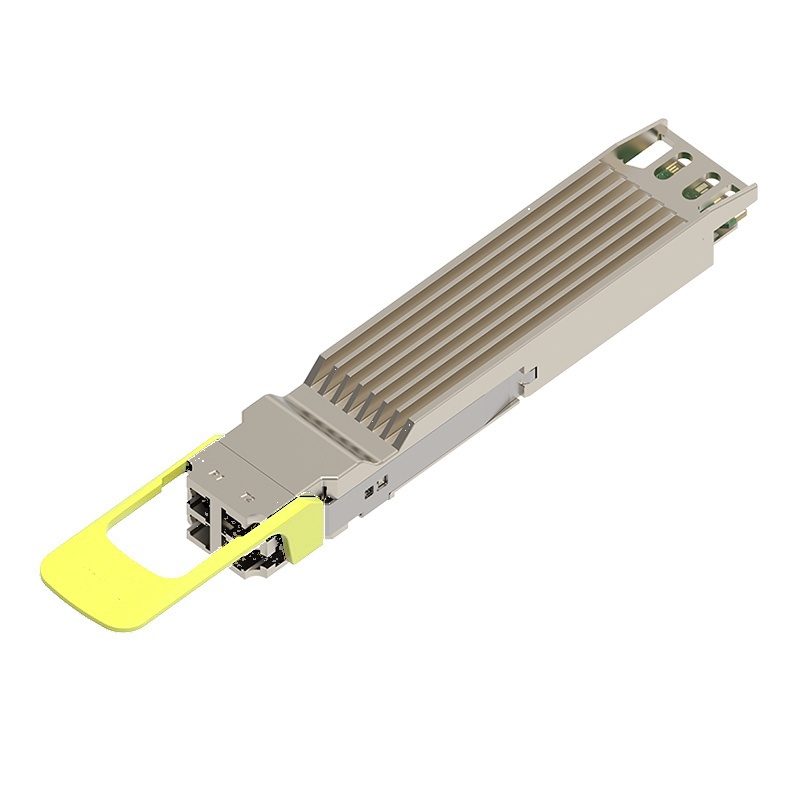

400G OSFP
400G OSFP transceivers are compliant with the latest releases of the OSFP MSA and RoHS.
We offer SR8, DR4, DR4+, DR4++ transceivers for various distances and applications.
We offer SR8, DR4, DR4+, DR4++ transceivers for various distances and applications.
Feature
- Single MPO APC connector receptacle optical interface compliant
- Single +3.3V power supply
- Hot-pluggable OSFP form factor
- Low power dissipation:<10W
- Operating temperature range: 0℃ ~ +70℃
- International class 1 laser safety certified
- Compliant with RoHS
Ordering Information
| Part No. | Application | Data Rate | Wavelength | Distance | Connector | Temp |
|---|---|---|---|---|---|---|
|
DAOUC-AAPPB8 |
400G SR8 |
8*50G 400GbE |
850nm VCSEL |
100m |
MPO-16 APC |
0~70℃ |
|
DCOUC-22QQB4 |
400G DR4 RHS |
4*100G 400GbE |
1311nm SIP |
500m |
MPO-12 APC |
0~70℃ |
|
DEOUC-22QQB4 |
400G DR4+ RHS |
4*100G 400GbE |
1311nm SIP |
2Km |
MPO-12 APC |
0~70℃ |
|
D1OUC-22QQB4 |
400G DR4++ RHS |
4*100G 400GbE |
1311nm SIP |
10Km | MPO-12 APC |
0~70℃ |
For more information, please contact anketitech.info@gmail.com
